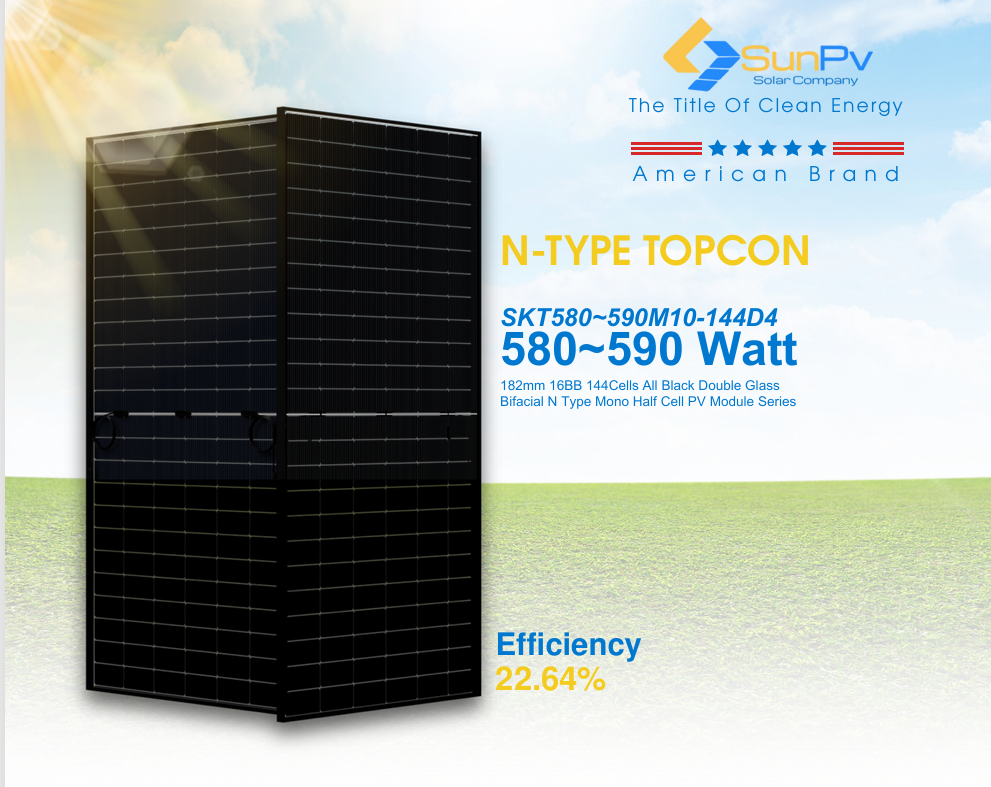

585W 182mm 144Cells 16BB
Double Glass Bifacial
N-TYPE MonoHalf Cell PV Module Series
Max Module Efficiency 22.64%
Power Warranty: 12 Years of 97% Output Power, 30 Years of 88% Output Power
| Parameter | STC |
|---|---|
| Maximum Power (Pmax) | 585 Wp |
| Open Circuit Voltage - Voc(V) | 51.67 |
| Short- Circuit Current - Isc(A) | 14.43 |
| Voltage at Pmax - Vmp(V) | 42.76 |
| Current at Pmax - Imp(A) | 13.69 |
| Module Efficiency - ηm(%) | 22.64% |
Maximum System Voltage(V): 1500Vdc (IEC / UL)
External Dimensions: 2278x1134x30mm
Weight: 31kg
Solar Cells: N-TYPE 16BB 182mm (2x72pcs)
